| Series | BROEN Ballomax® Ball valves |
| Type | Trunnion mounted valves - Full bore |
| Art. no. | 3/A250KK3D20 |
| Manufacturer | 5790000273812 |
| Connection 1 | Flange |
| Min temperature | -20 |
| Max temperature | 150 |
| Bore | 250.0 |
| Weight | 132 KGM |

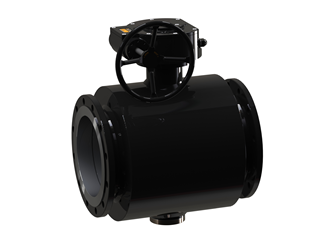

| Description | BROEN Ballomax® Steel ball valve - Trunnion valve – Full bore – with BROEN gear - DN250, PN16 |
| Remark |
Construction Fully welded steel ball valve Applications Stop valve for heating systems, district heating, cooling and industrial purposes. In order to achieve lowest possible torque all valves bigger than DN 150 are trunnion mounted as standard. Media Water, air and other media not decomposing the steel. If in doubt, please contact BROEN Ballomax® Sales Department. Surface treatment Eco-friendly protection finish against corrosion Approvals and certificates CE, PED 2014/68/EU Module H, 3.1 upon request Accessories Columns available on request - DN150-800 |
