| Series | BROEN Ballomax® Ball valves |
| Type | Ball valves - Reduced bore |
| Art. no. | 64103040 010 |
| Manufacturer | 5790000273812 |
| Connection 1 | Flange |
| Connection 2 | Flange |
| Max temperature | 150 |
| Bore | 32.0 |
| Weight | 6.2 KGM |

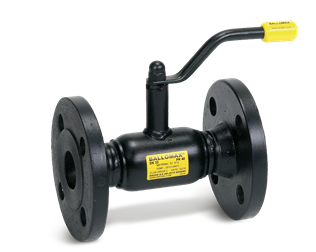

| Description | BROEN Ballomax® Ball valve - DN40 - Reduced bore, PN40 |
| Remark |
Construction Fully welded steel ball valve Operation The standard handle is 180 degrees adjustable. Applications Isolating valve for heating systems, district heating, cooling and industrial purposes. Media Water, air and other media not decomposing the steel. If in doubt, please contact BROEN Ballomax® Sales Department. Surface treatment Eco-friendly protection finish against corrosion Approvals and certificates CE, PED 2014/68/EU Module H, 3.1 upon request Accessories ISO-flange. Mounting flange for later mounting of gear / actuator. Available on request. DN 40-50. Itemno.: 208255 Hexagon for insertion key available on request. |
