Product information

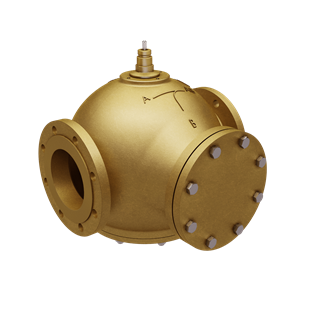

VALVE L2F, EN FLANGES. Two-way control valves type L2F (Gun Metal) with 2 single seats are designed for regulating low, medium, high pressure hot water + hot & cold seawater. The valves are installed combined with our self-acting thermostats, pressure differential regulators or electric valve actuators for regulation in central heating plants, industrial plants, industrial processes or marine installations - especially in control systems for cooling.
|
Article
|
Clorius Product
|
|
Article number
|
2.2.05.01 L2F
|
|
Part of article group
|
2-way Control Valves, DN 65-150mm, Gun Metal - 2.2.05.01 L2F
|
Characteristics
|
Material
|
bronze
|
|
Manufacturer
|
Clorius Controls
|
|
Connection Type
|
Flange
|
Technical specifications
|
Min temperature
|
-10.0
|
|
Max temperature
|
300.0
|

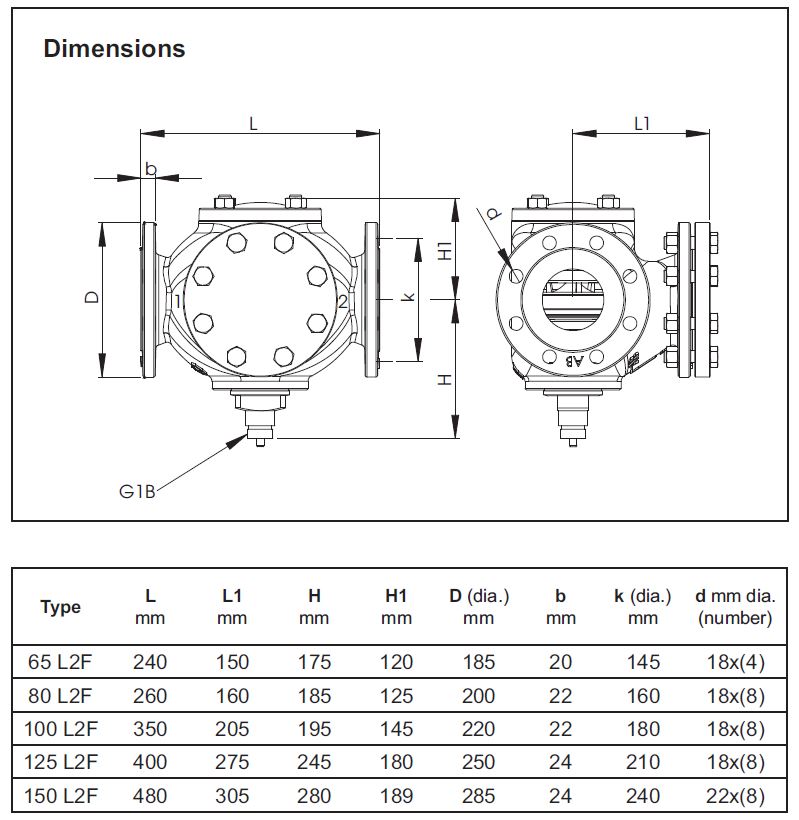

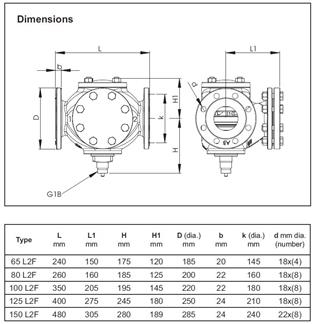

Dimensions
| d |
6" (DN150) |
| H1 |
480.0 |
| H |
280.0 |
