| Name | BROEN Full Flow Galvanized, 28xG1A, DN25, High |
| Description | 28xG1A (DN25) |
| Art. no. | 1025001201-1100 |
| Manufacturer | 5790000273812 |
| GTIN | 05708537747232 |
| Connection 1 | G - male thread gas cylindrical (BSPP) |
| Connection 2 | Press |
| Internal diameter connection 1 | 1" (DN25) |
| Internal diameter connection 2 | DN25 |
| Min temperature | -35 |
| Max temperature | 135 |
| Weight | 0.7913 KGM |

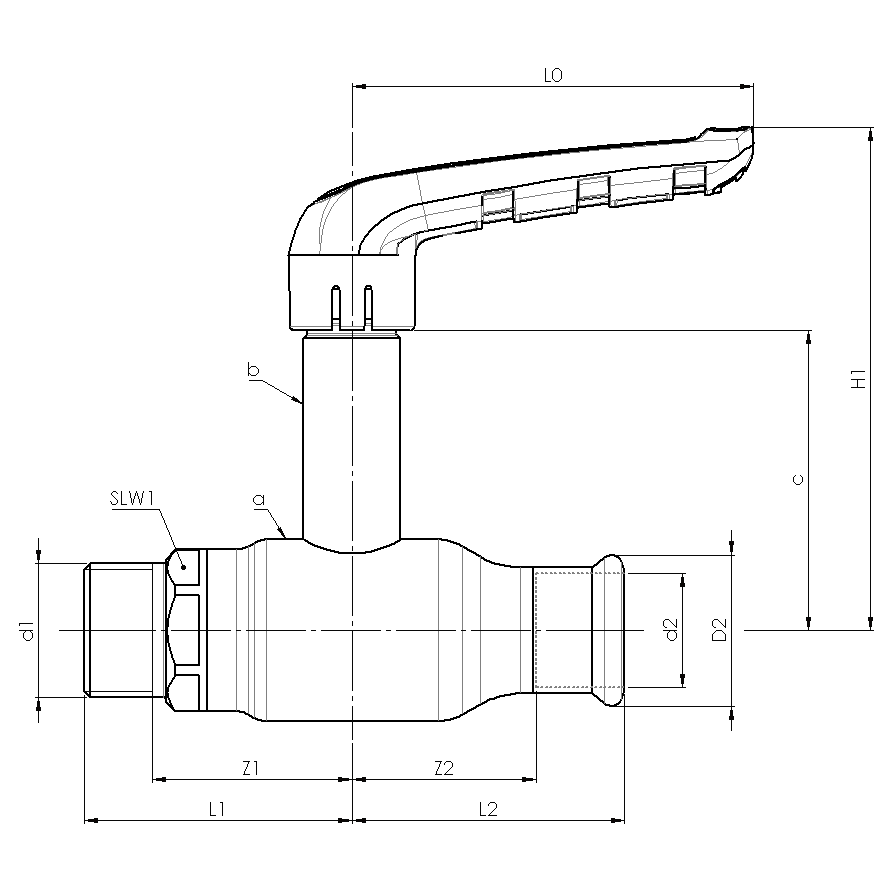

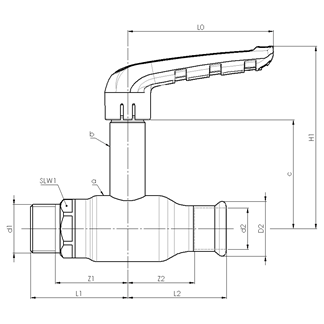

| L0 | 99.6 |
| L1 | 66.5 |
| L2 | 69.8 |
| L3 | 69.8 |
| Z1 | 49.5 |
| Z2 | 45.6 |
